Quick Take
- Heavy duty grade
- Directly printable BOPP packaging tape
- Synthetic rubber/resin adhesive
Download Our Material Line Card
Buy your tape from us, and get a discount on a case taper!

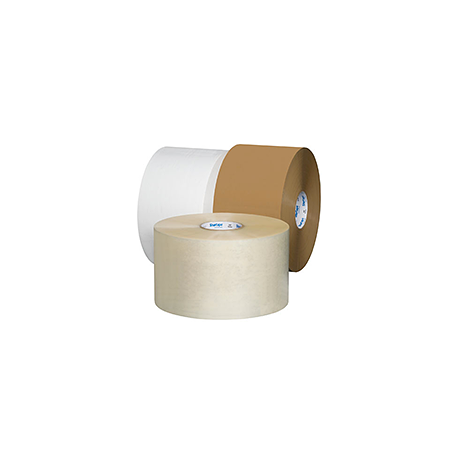

Heavy-Duty Grade Printable Case Sealing Tape
Directly printable with all leading brands of solvent inks. Exclusive release-coat technology allows for consistent unwind. Faster drying times result in more efficient use of machines. Superior ink anchorage without pickoff.
Specifications
- Heavy-duty grade
- Directly printable BOPP packaging tape
- Synthetic rubber resin
- ASTM D1974
- CID-A-A-1684C
Applications
- For use on Siat L33, L36, L233 (or equivalent) printing presses
Please contact Pro Pac or call 888-298-8436 for your case sealing tape.
Specifications of HP 560 Case Sealing Tape | |||
| Specification | Standard | Metric | ASTM Test Method |
| Adhesion to Stainless Steel | 58 oz / in width | 6.35 N / 10 mm | D 3330 - D 3330M |
| Thickness | 3 mil | 0.08 mm | D 3652 - D 3652M |
| Elongation | 150% | 150% | D 3759 - D 3759M |
| Service Temperature Min | 20° F | -7° | N/A |
| Service Temperature Max | 150° F | 66° | N/A |
| Application Temperature Min | 35° F | 2° | N/A |
| Application Temperature Max | 110° F | 43° | N/A |
| Tensile Strength (Longitudinal Direction) | 42 lbs / in width | 73.6 N / 10 mm | D 3759 - D 3759M |
| Tensile Strength (Transverse Direction) | 74 lbs / in width | 129.5 N / 10 mm | D 3759 - D 3759M |
| Holding Power to Fiberboard | 30,000 minutes | 30,000 minutes | PSTC 107 |
| Values obtained from tests do not represent a guarantee of product performance. Individual rolls may vary slightly from these averages. We recommend the user to determine whether the product is fit for a particular purpose and method of application. | |||
HP 560 Available Sizes | ||||
| Color | Dimensions | Rolls per Case | Pounds per Case | Cases per Pallet |
| Clear | 144mm x 914m | 2 | 43.5 | 36 |
| Clear | 150mm x 914m | 2 | 45.3 | 48 |
| Tan | 144mm x 914m | 2 | 43.5 | 36 |
| Tan | 150mm x 914m | 2 | 45.3 | 48 |
| White | 144mm x 914m | 2 | 43.5 | 36 |
| White | 150mm x 914m | 2 | 45.3 | 48 |
